Dimensions
Controller: (L) 93.3 mm x (W) 57.1 mm x (H) 17 mm
Lightstrip up to 65": (L) 4000mm x (W) 12mm x (H) 4.8mm
Camera: (L) 31mm x (W) 28mm x (H) 34mm

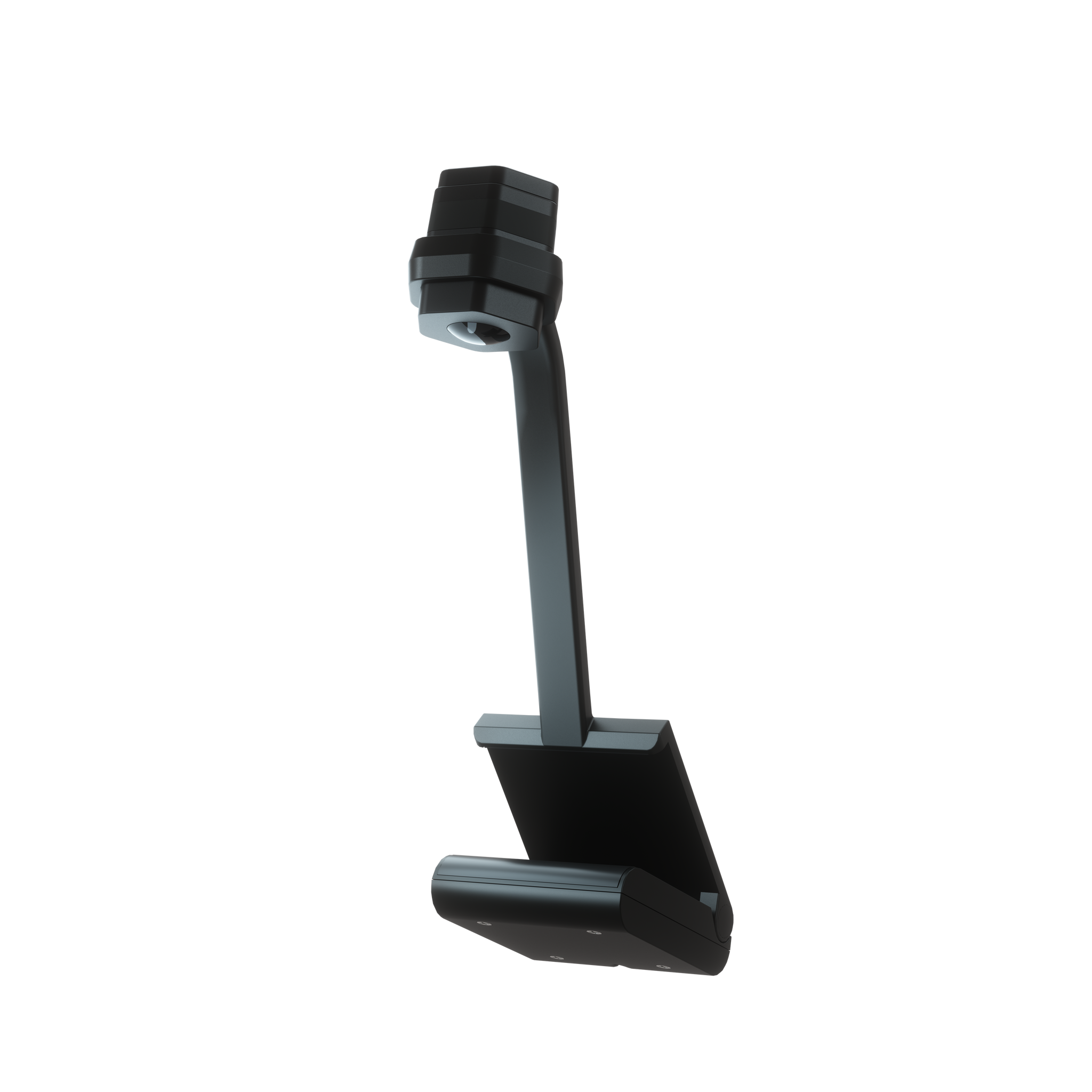

Mount Arm: 181.2mm
Corner Brackets: (L) 148.5mm x (W) 18mm x (H) 17.9mm
Camera Cap: (L) 29.9mm x (W) 27mm x (H) 4.6mm
Cable Length: Camera Cable: 1.5m | Lightstrip Cable: 1m | PSU Cable: 1.5m
General
Lumens Up to 65": 1075 lumens
Communication Protocol: WiFi (2.4 GHz b/g/n)
NOTE: 5 GHz networks are not compatible with Nanoleaf products.
Dimmability: Yes (via Nanoleaf App, Voice, Controller)
Trimmable Up to 65": Yes
The Nanoleaf App: Control via Nanoleaf App (Android & iOS) for mobile/tablet or The Nanoleaf Desktop App (Windows & Mac).
Compatibility: Apple Home, Amazon Alexa, Google Home, SmartThings, Razer Chroma
Color
Color Channel Configuration: Multicolor RGB
Resolution: 30 LEDs per metre
Color Zones: 10 zones per metre
Power
Input Voltage: 200V-240V,50/60Hz
PSU Output Voltage: 12V2A
Max Power Supply Power: 24W
Max Energy Consumption of LS: 18W
Use environment
Lifetime: 25,000 hrs
Warranty: 2 Years
Operating temperature range: 0℃ to 40℃
Usage: Indoor
IP Rating: IP20
Mounting Type:
Camera:Use mount for above the TV camera placement, or tape to secure the bottom of the camera to a TV shelf.
Controller:Tape at the bottom.
Lightstrip:Tape at the back of the Lightstrip.
Sync+ Requirements
Sync+ Requirements: Your Nanoleaf devices must be on a specific Firmware before using Sync+.
Nanoleaf 4D: 11.2.0+
Matter over Wi-Fi Products : 2.1.3+
Matter over Thread Products: 4.1.0+
HomeKit over Thread Products: 1.6.49+
OG Rhythm Light Panels: 5.3.0+
All Other Nanoleaf RGB Products: 9.2.0+
